Jadis JP200 MC
Jadis JP200 MC
The emotion of tube sound, signed by Jadis

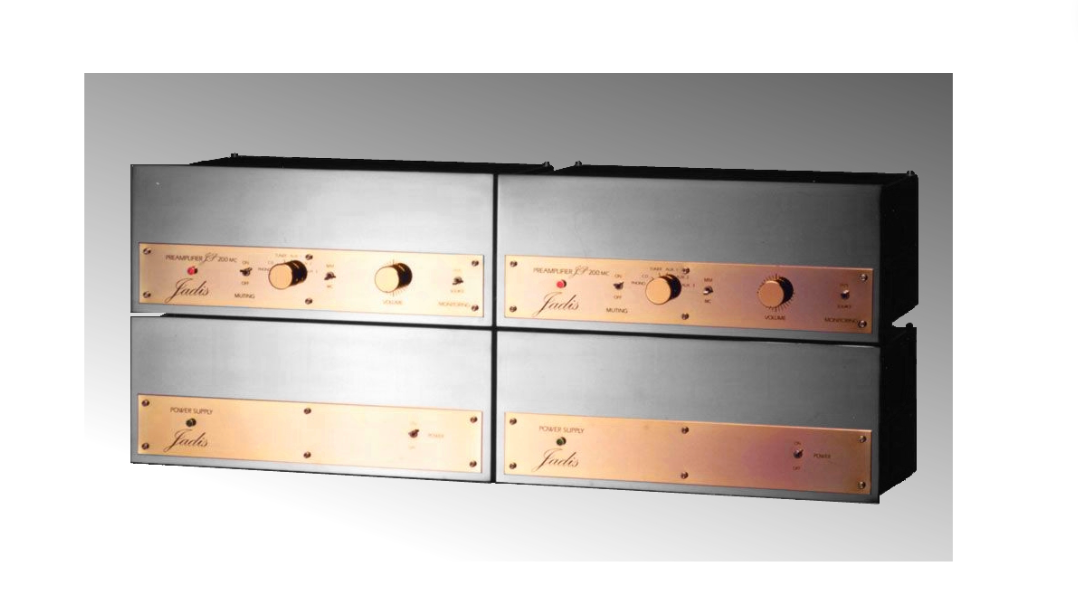

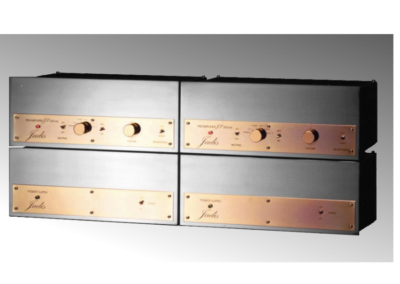

The exceptional Jadis JP200MC preamplifier is a reference ensemble designed in a true dual-mono architecture. Spread over 4 separate units with independent power supplies, it perfectly isolates each channel from any interference. Its outstanding MM/MC phono stage accepts every cartridge on the market, including low-impedance moving coils. It delivers precisely staged gains: 25 dB on line, 59 dB in MM and 75 dB for MC cartridges.
A built-in absolute phase inverter guarantees optimal listening fidelity whatever the pressing of your records. Its connectivity offers 4 line inputs, independent MM and MC inputs and a Tape Monitor loop. Each audio unit employs 6 ECC83 tubes and 1 x 6922, backed by EF86 and EL84 regulation in each power supply unit.
It covers a bandwidth of 20 Hz to 50 kHz on line while following an impeccable RIAA curve on phono. In listening, it delivers a masterful sound of absolute fluidity, disarming naturalness and living richness. Built without compromise and available in gold or silver finishes, the JP200MC draws the maximum potential from your analogue sources.
The emotion of tube sound, signed by Jadis
Description
Built with 4 lines, 1 MM and 1 MC input the JP200MC will allow you to connect all the analog sources you might want to use. The phono stage will accept any cartridges even the ones with a very low impedance. Moreover this is a 4 blocks unit, with separated and over sized power supply and a switch to reverse the phase. The JP200MC includes all the ingredient that makes great sounding preamplifier.
Spécifications
| Type | Dual mono line/MM/MC preamplifier with separate power supplies |
| Gain | 25dB(line)/59dB(MM)/75dB(MC)@1KHz |
| Input | 4 line, 1 MM, 1 MC, 1 tape monitor |
| Bandwidth | 20Hz to 50 KHz(line) RIAA (phono) |
| Number of blocks | 4 |
| Tubes | Module: 6 x ECC83, 1 x 6922 per block Power supply: 1 x EF86, 1 x EL84 per block |
| Dimensions | 43 x 34.5 x 17.5 cm |
| Consumption | 65 VA |
| Finish | Gold or silver |
| Weight | 60 kg |
Options
– Remote control
– 117 V or 230 V
– Front panel: Gold or Silver
