The emotion of tube sound, signed by Jadis

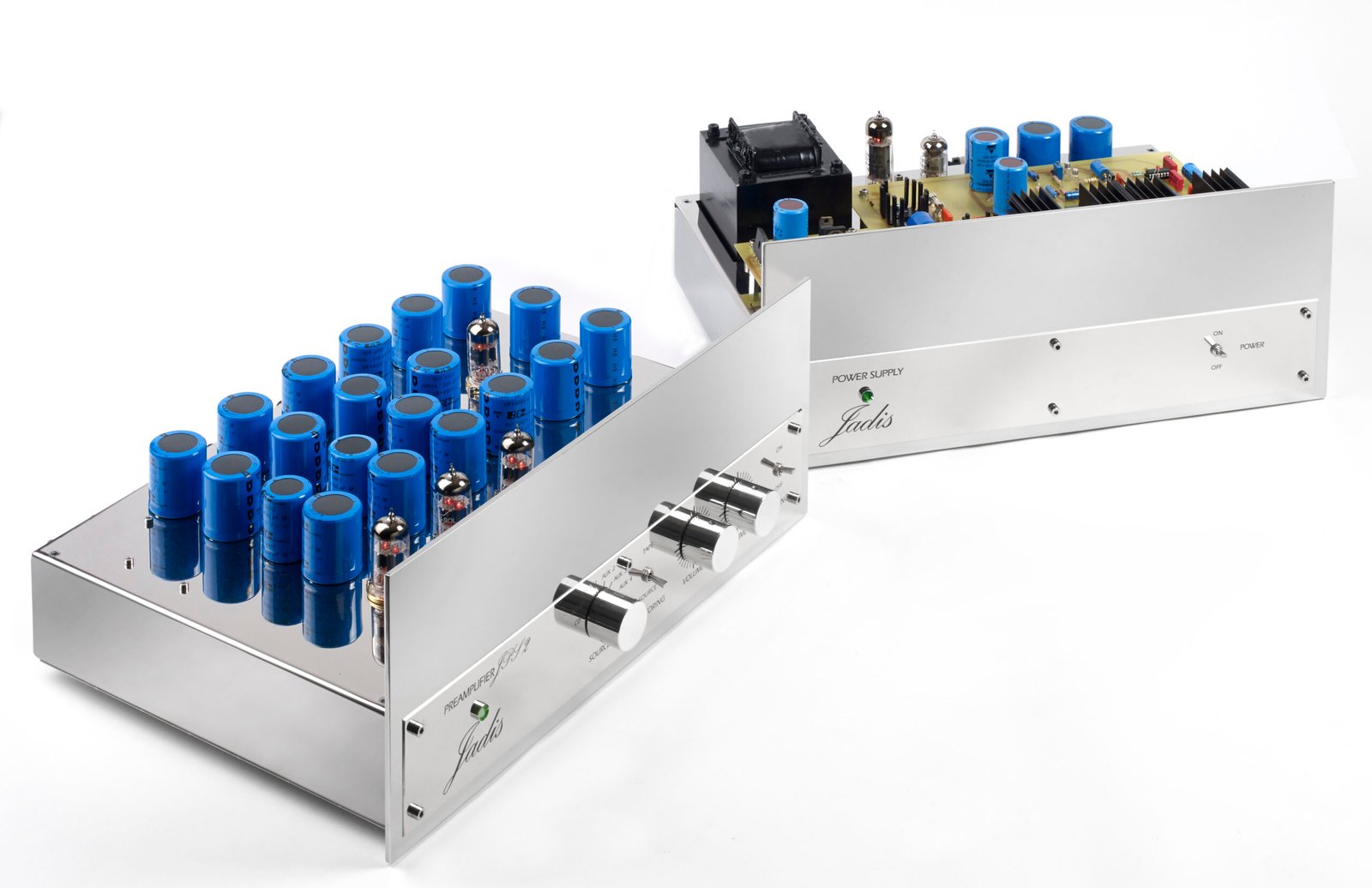

The exceptional Jadis JPS2 line preamplifier adopts an uncompromising design in two separate chassis. Its dedicated power supply unit regenerates an 80 Hz voltage, completely eliminating 50/60 Hz mains pollution. The high voltage benefits from tube regulation (EF86 and EL84) for exemplary stability and silence. The audio stage combines 3 ECC83 tubes for the line section and 1 ECC82 tube as an impedance adapter on the CD input.
It offers a controlled gain of 24 dB on line and 18 dB on the CD input, with a bandwidth of 20 Hz to 74 kHz. Its complete connectivity includes 5 line inputs, a Tape Monitoring loop and 2 outputs to make bi-amplification easy. To fit your system perfectly, it is available in either a balanced (XLR) or unbalanced (RCA) version.
In listening, it impresses with a grand, holographic soundstage that gives the feeling of “pushing the walls back”. With masterful build quality totalling 31 kg, it comes dressed in a gold or silver finish. Recognised by the specialist press as one of the world’s finest references, the JPS2 makes music limpid and alive.
A vivid musicality, a timeless aesthetic.
Description
Available in balanced (JPS2S) or unbalanced (JPS2) version.
The Jadis JPS2 is a line preamplifier which uses three ECC83 for the line function and ECC82 to adapt the impedance on the CD entry. Its specific power supply recreates a voltage for the module with a 80 Hz frequency in order to avoid problems that can occur due to the 50 or 60 Hz frequency from the mains supply.
The high voltage is regulated by two tubes: 1 x EF86 and 1 x EL84.
Golden connector and further connections are in copper and silver which assure the faithful broadcast of the audio signal. The “point-to-point” wiring gives to the sound stage plenty of aeration and dimension.
JPS2 is available in balanced or unbalanced version.
Spécifications
| Type | Line preamplifier with separated power supply |
| Gain | line 24dB – CD input 18dB |
| Input type | 5 line, 2 output, 1 tape monitoring |
| Bandwidth | 20Hz to 74kz @-3dB |
| Number of blocks | 2 |
| Tubes list | ECC82 X 1 ECC83 X 3 EF86 X 1 EL84 X 1 |
| Dimensions | 430 x 345 x 175 mm each |
| Weight | 31Kg |
| Consumption | 50VA |
| Finish | Gold or Silver |
Options
– Remote control
– 117 V or 230 V
– Front panel: Gold or Silver
