Jadis JP500
Jadis JP500
The emotion of tube sound, signed by Jadis

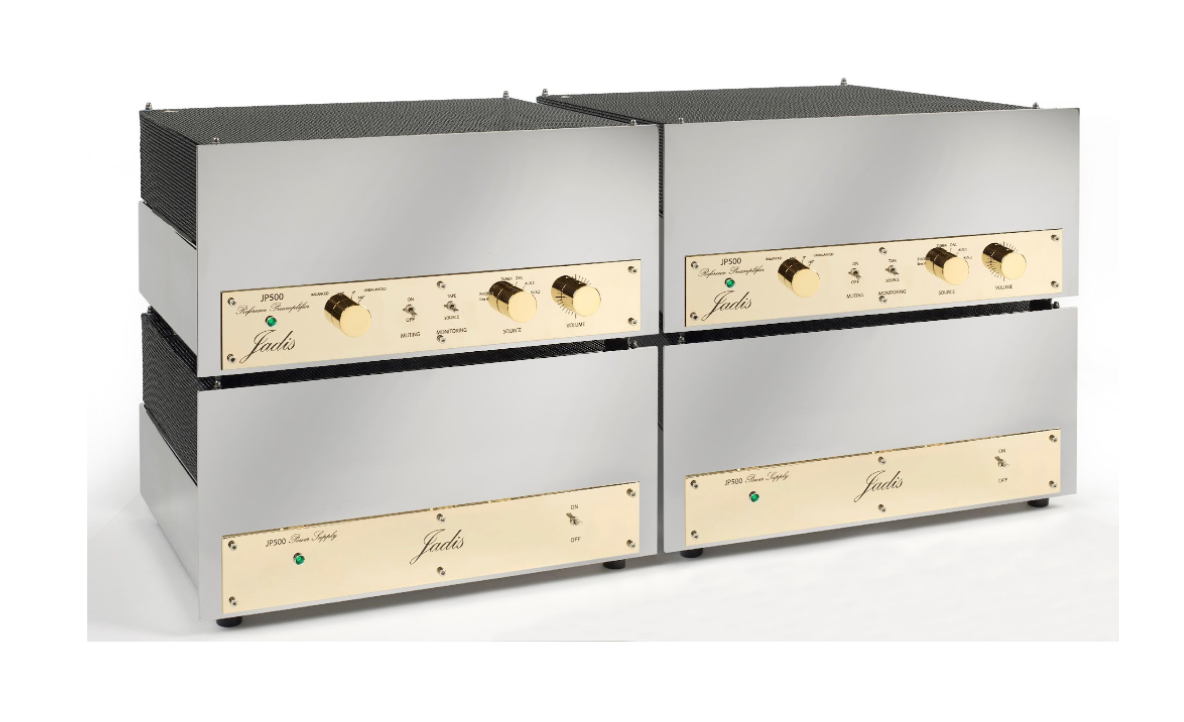

The Jadis JP500 line preamplifier represents the absolute, uncompromising culmination of the brand’s expertise. Designed as a true dual mono, it consists of 4 separate units with fully independent power supplies. It features 5 inputs and outputs available in either balanced (XLR) or unbalanced (RCA) connections. An absolute phase inversion switch allows the reproduction to match the original polarity of each recording.
Its extraordinary architecture employs 16 rigorously matched tubes (ECC82, ECC83, EL84, EF86 and 6CA7). It delivers a linear gain of 20 dB with an input sensitivity of 120 mV over a bandwidth of 15 Hz to 27 kHz. In listening, it distils a masterful sound combining total transparency, unbridled dynamics and striking substance.
Visually sumptuous, this monumental ensemble weighs a total of 87 kg, asserting its technical authority. It is available in the brand’s iconic handcrafted finishes, in gold or silver. A true audiophile masterpiece, the JP500 transcends any high-end system in an ultimate quest for perfection.
The emotion of tube sound, signed by Jadis
Description
The ultimate expression of the art. Line pre-amplifier with output transformer. The JP500 is an absolutely no compromise unit at the service of music reproduction. Built-in balanced and unbalanced capability, a switch allows the user to change the absolute phase to his convenience.
Spécifications
| Type | Dual mono line preamplifier with separated power supply |
| Gain | 20dB line |
| Input type | 5 line balanced or unbalanced |
| Bandwidth | 15Hz to 27 KHz @-3dB |
| Sensibility | 120 mV |
| Number of blocks | 4 |
| Tubes list | 6 x ECC82 / 2 x ECC83 / 4 x EL84 / 2 x EF86 / 2 x 6CA7 |
| Dimensions | 440 x 330 x 210 mm each |
| Weight | 87 Kg |
| Consumption | 250 VA |
| Finish | Gold or Silver |
Options
– Remote control
– 117 V or 230 V
– Front panel: Gold or Silver
