Jadis JP80 MC
Jadis JP80 MC
The emotion of tube sound, signed by Jadis

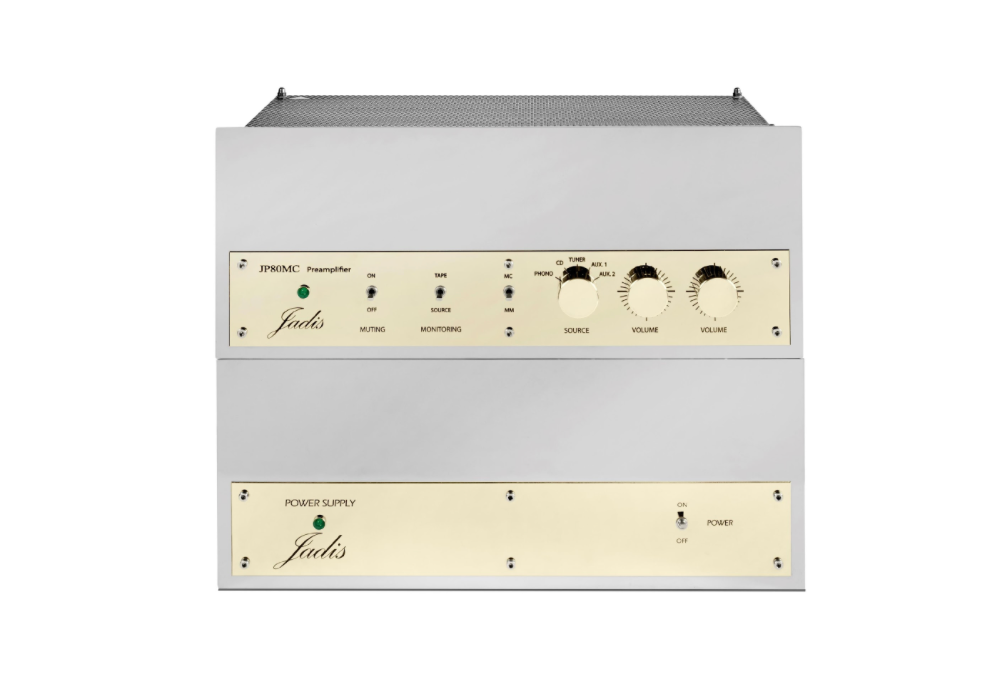

The Jadis JP80MC is the brand’s most iconic and most renowned preamplifier. Designed in two chassis with a separate power supply, it completely isolates the audio signals from any electrical disturbance. Its legendary phono section accepts MM and MC cartridges, including very low-impedance models. It offers an impressive gain of 84 dB in MC, 57 dB in MM and 20 dB on its 4 line inputs.
Its architecture uses 6 ECC83 and 2 ECC88 tubes, backed by an EF86 and an EL84 in the power supply. The line stage provides a remarkable bandwidth of 20 Hz to 50 kHz for total spectral transparency. In listening, it delivers a round, full-bodied sound with palpable substance and captivating instrumental textures.
Able to convey the emotion of a jazz trio or a string quartet, it creates a living atmosphere at any volume level. With masterful construction totalling 30 kg, it is available in gold or silver finishes. Unanimously recognised by music lovers, the JP80MC elevates your vinyl records and transcends your entire system.
The emotion of tube sound, signed by Jadis
Description
Spécifications
| Type | RIAA MM/MC phono preamplifier, line |
| Gain | 20 dB (line) / 57 dB (phono MM) / 84 dB (phono MC) at 1KHz |
| Input | 1 MM, 1 MC (Z>47K), 4 line |
| Bandwidth | 20 Hz to 50 KHz (line stage) |
| Number of blocks | 2 |
| Tubes | ECC88 X 2 ECC83 X 6 EF86 X 1 EL84 X 1 |
| Dimensions | 430 x 345 x 175 mm each |
| Weight | 30Kg |
| Consumption | 65 VA |
| Finish | Gold or silver |
Options
– Remote control
– 117 V or 230 V
– Front panel: Gold or Silver
