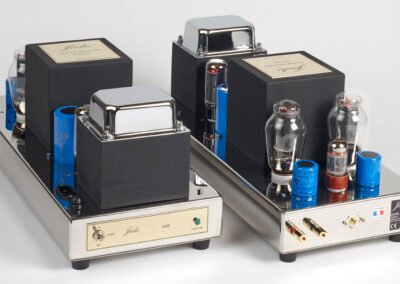

Jadis SE300B
Jadis SE300B
The emotion of tube sound, signed by Jadis
The SE300B supplies a power of 10W RMS and functions in pure class-A with single-ended mounting (the two tubes are in parallel) with an automatic bias. The two high voltages, driver and power, have vacuum-tube power supplies. The bandwidth (at –3dB) is from 20Hz to 20kHz, without any feedback. The driver stage, powered at 400V, is built around a double-triode 6SN7. The two elements of the tube are mounted in cascade. The output stage is powered at 320V, which allows the tubes to work in the best conditions.
A vivid musicality, a timeless aesthetic.
Specifications and options
Here is the Jadis SE300B
There is one thing that generally speaking, 300B-based amplifiers do so well: they breathe life into the music. But the Jadis amplifiers breathe more than life into the music; they impart light as well. This is how I would define ultimate transparenc
Spécifications
| Type | Triode single ended monoblock amplifier |
| Bias | Autobias |
| Power | 10W A class |
| Bandwidth | 20Hz to 20kHz @-3 dB |
| Sensitivity | 450mV |
| Number of blocks | 2 |
| Tubes list | 4 x 300B, 4 x 5U4GB, 2 x 6SN7 |
| Dimensions | 20.3×22.9×53.1 cm |
| Weight | 29.5kg |
| Consumption | 140 VA per channel |
Options
– Remote control
– Color
– Etc…
