Jadis JS5
Jadis JS5
The emotion of tube sound, signed by Jadis
The JS5 converter bears witness to the essential link between digital innovations and analogue world, to which we are very attached.
The first DAC of a new range, result of research and innovations to offer an incredible experience.
Digital section is built around a DAC sabre ES9038PRO using Hypertream technology 32 bit.
Four digital inputs, managed by a microship Microcontroller, pass through this converter. Output signal is filtered and shaped before passing by our famous self-balanced symmetrical analog stage.
An amplification stage followed by an impedance adapter stage ensures output signal muscial quality supplying in an optimum way the following link.
To make this system works, a separate chassis contains power supply of the différents stages, analog and digital sections have their own transformer.
Each voltage of each section is separated. Rectification, filtering PI cell and regulations supply in the best way signal treatment stages.
A vivid musicality, a timeless aesthetic.
Specifications and options

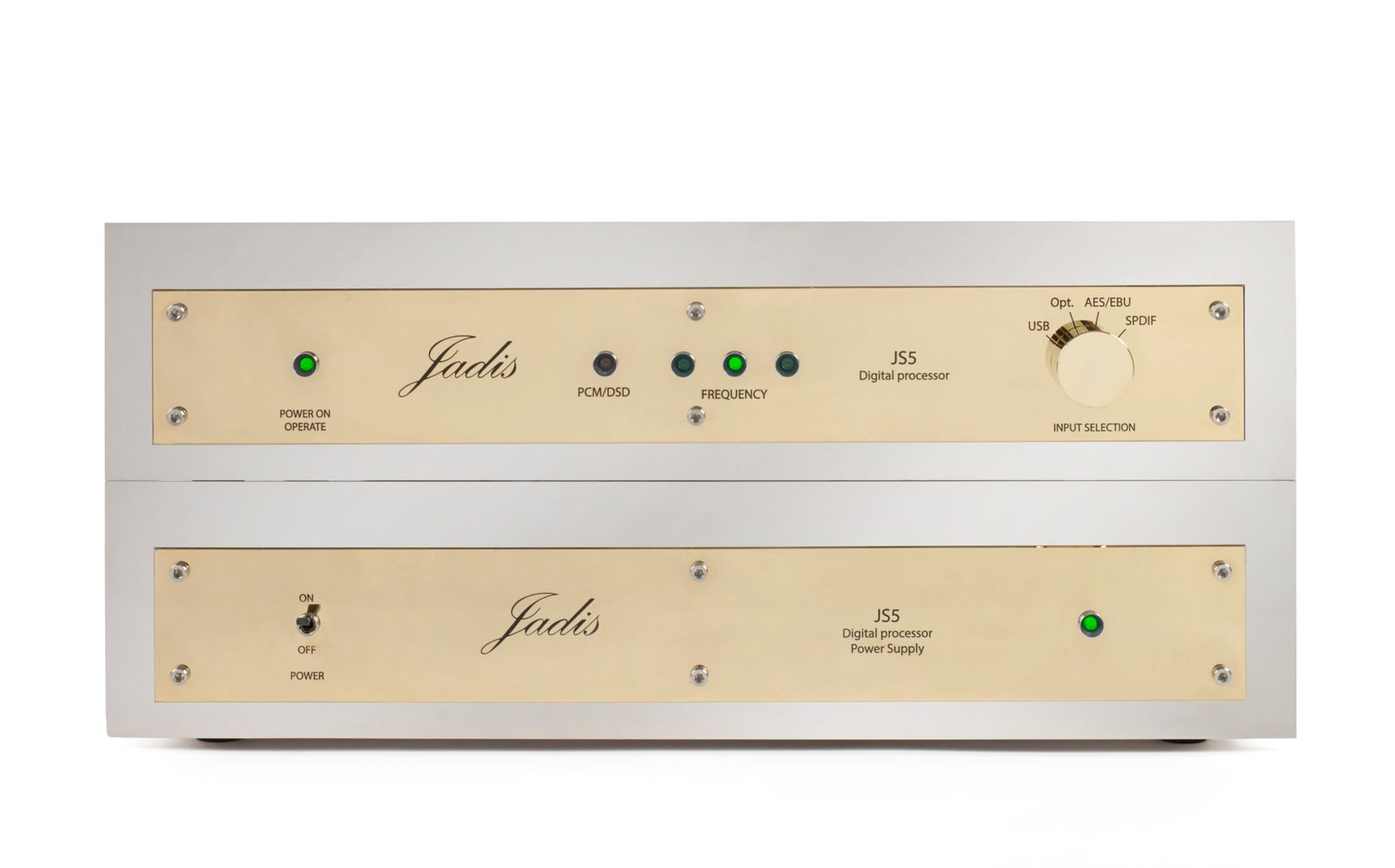

Here is the Jadis JS5
An amplification stage followed by an impedance adapter stage ensures output signal muscial quality supplying in an optimum way the following link.
To make this system works, a separate chassis contains power supply of the différents stages, analog and digital sections have their own transformer.
Each voltage of each section is separated. Rectification, filtering PI cell and regulations supply in the best way signal treatment stages.
Spécifications
| Type | Tube digital to analog converter |
| Tubes | 2 x ECC82, 2 x ECC88, 1 x EL84, 1 x EF86 |
| Output | Unbalanced RCA / Balanced XLR |
| Input | SPDIF on RCA – PCM 24 bits/192 kHz AES/EBU on XLR – PCM 24 bits/192 kHz SPDIF on Toslink – PCM 24 bits/192 kHz USB type B – PCM: 24 bits/192 kHz – DSD: 24 bits/384 kHz |
| Dimensions | 46 x 29 x 11 cm each |
| Weight | 20 kg |
| Consumption | 75 VA |
Options
– Remote control
– Color
– Etc…
